Specification
Retaining height: 1~4m
Width of channel: 3~50m
Panel material: Steel, Stainless steel
Foundation: Reinforced concrete foundation
Lift and Drop Time: 1~10min/span
Application
Spillway, irrigation channel, landscape
No electricity area
No power transformer, no power cables
Sea coast

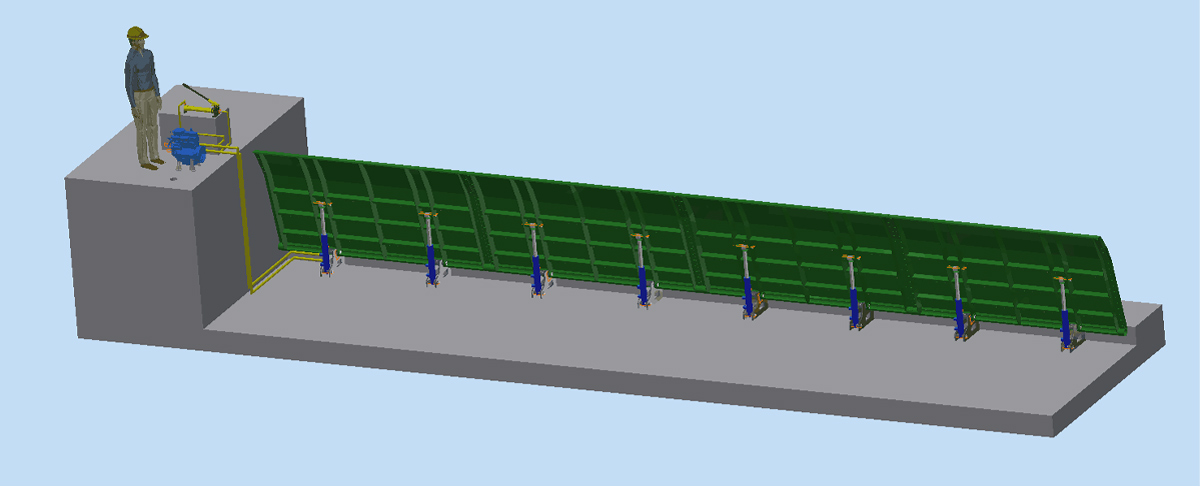

Type 1: Integrated Simplified Elevated Dam(ISED)
Diesel Engine

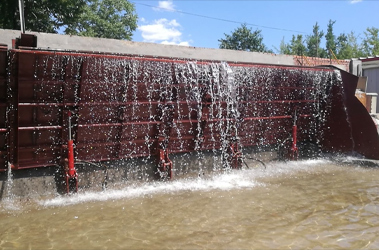

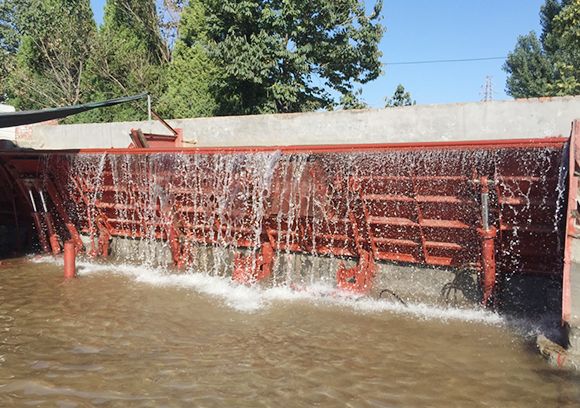

Dam Over flow

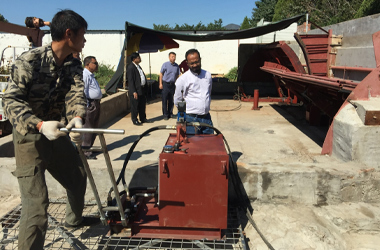

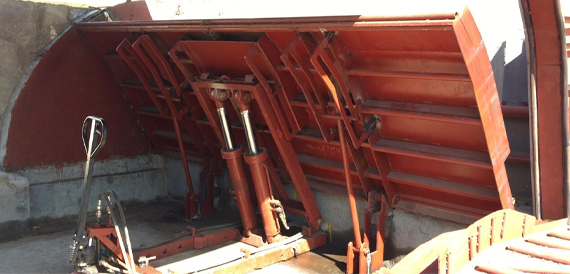

Manual Hydraulic Pump
Characteristics
Driven by manpower or diesel engine;
The back of each panel have 2 hydraulic cylinders;
Operating on side bank;
Especially used in freshwater and no electricity area.
Type 2: Movable Simplified Elevated Dam(MSED)
Movable Truck
Movable Truck
Characteristics
Only requires 2 cylinders to lift or drop all panels by trolley;
Panels are supported by locking rod;
The truck operated on the concrete base floor;
Especially used in sea coast.
Advantages
Simple structure
Easy and Fast Operation & installation
Short construction period
Highly integrated
Cost saving
