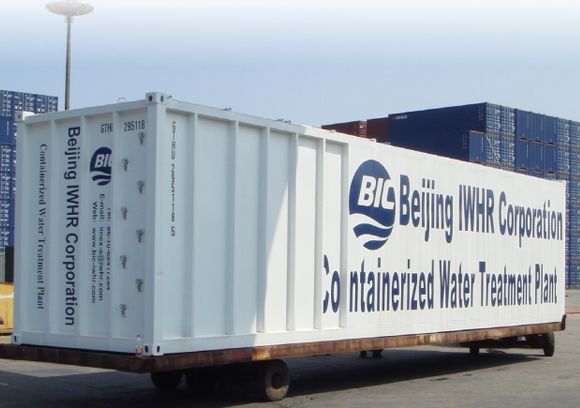

Containerized Water Treatment Plant
Model Parameter | ET-0.5C | ST-1C | ST-2C | ST-5C | ST-10C(G) | ST-15C(G) | ST-20C(G) | ||
| Water quantity m3/h | 0.5 | 1 | 2 | 5 | 10 | 15 | 20 | ||
| Rated recovery rate% | 50~65 | 50~65 | 50~65 | 60~75 | 60~75 | 60~75 | 60~75 | ||
| Overall dimensions(mm) | length | 1500 | 1500 | 1500 | 6058 | 6058 | 6058 | 6058 | |
| width | 800 | 800 | 800 | 2438 | 2438 | 2438 | 2438 | ||
| height | 1800 | 1800 | 1800 | 2591 | 2591 | 2591 | 2591 | ||
| Container Model | / | 20 feet to move | |||||||
| Installed power(KW) | 3 | 6 | 8.5 | 13.5 | 22 | 30 | 36 | ||
Containerized Sewage Treatment Plant
Model Parameter | ET- 10C(G) | ET- 20C(G) | ET-30C(G) | ET- 40C(G) | ET- 50C(G) | ET- 60C(G) | ET-75C(G) | ET-100C(G) | ||
| Water quantity 3/d | 10 | 20 | 30 | 40 | 50 | 60 | 75 | 100 | ||
| Rated removal rate% | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | ||
| Overall dimensions(mm) | length | 6058 | 6058 | 6058 | 6058 | 12192 | 12192 | 12192 | 12192 | |
| width | 2438 | 2438 | 2438 | 2438 | 2438 | 2438 | 2438 | 2438 | ||
| height | 2591 | 2591 | 2591 | 2591 | 2896 | 2896 | 2896 | 2896 | ||
| Container Model | 20 feet to move | 40feet to move | ||||||||
| Installed power(KW) | 6.86 | 7.88 | ||||||||
Model Parameter | ET-150C | ET-200C | ET-250C | ET-300C | ET-400C | |
| Water Quantity m3/d | 150 | 200 | 250 | 300 | 400 | |
| Rated removal rate% | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | |
| Overall dimensions(mm) | length | Combined | ||||
| width | ||||||
| height | ||||||
| Container Model | 20 feet and 40 feet teu | |||||
| Installed power(KW) | 14.025 | 16.725 | ||||

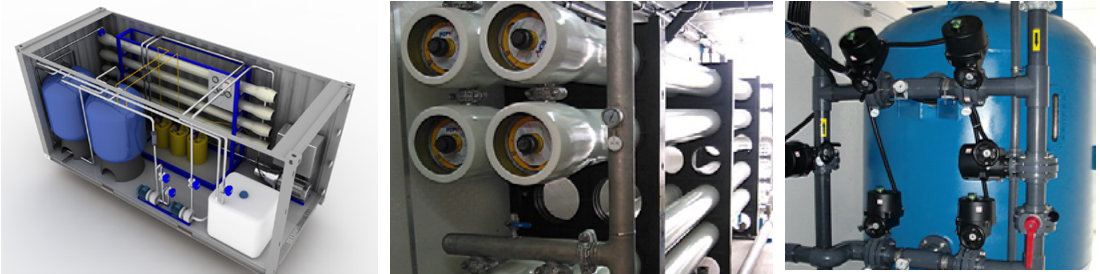

Containerized Water Purification Plant
It is mainly used for industrial, mining, and domestic drinking purpose when raw water is sourced from rivers, lakes, ponds and surface water.

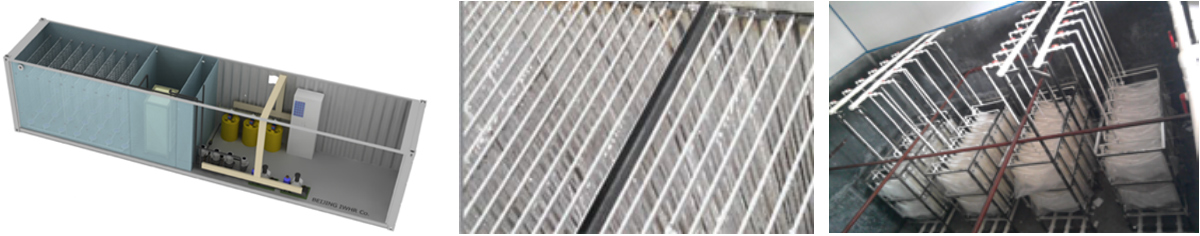

Containerized Water Treatment Plant
It is suitable for all kinds of sewage and industrial wastewater in offices, markets, hotels, schools, factories, and municipalities ect

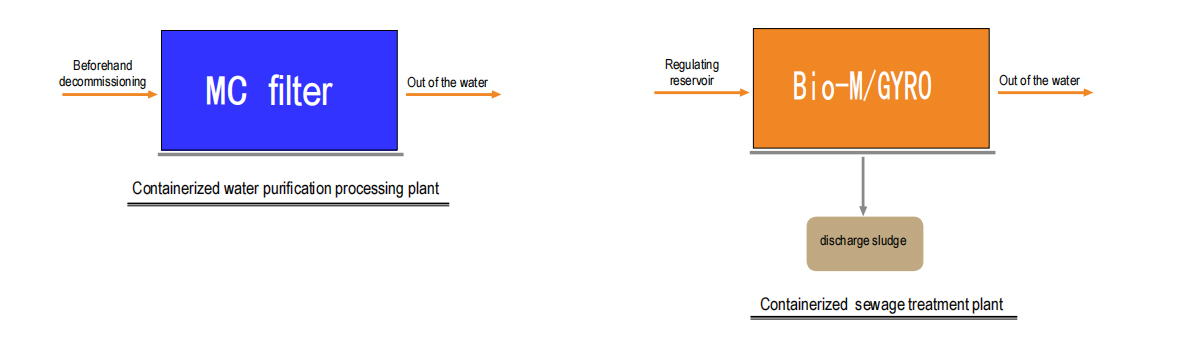

Container Water Treatment Process
BIC containerized water treatment plant assimilates the system integration of sewage treatment plant and steel structure processing equipment, which owning itself advantages and characteristics:
Relying on the container housing appearance, can meet the sea Shipment requirements, the transportation is extremely convenient;
Easy installation, users only need to pass in and out water pipes could be directly connected with the equipment normal operation;
The operation is simple, the equipment according to edit well in advance conditions, the control of automatic operation, can also according tothe needs of the users, manual control;
Flexible operation, the equipment could adapt to the changing capacity of water ;
Less investment, low operation cost, small footprint; Using the design principles of intensive, the system Configuration is more reasonable;
System maintenance is very convenient and only personnel on a regular basis Patrol, mechanical and electrical equipment preventive maintenance;
Process control system is very simple, reduced running the labor intensity of operation, sewage treatment system is safe and reliable.
The Power Supply Trye
Electricity power supply
Generator power supply
Solar power
